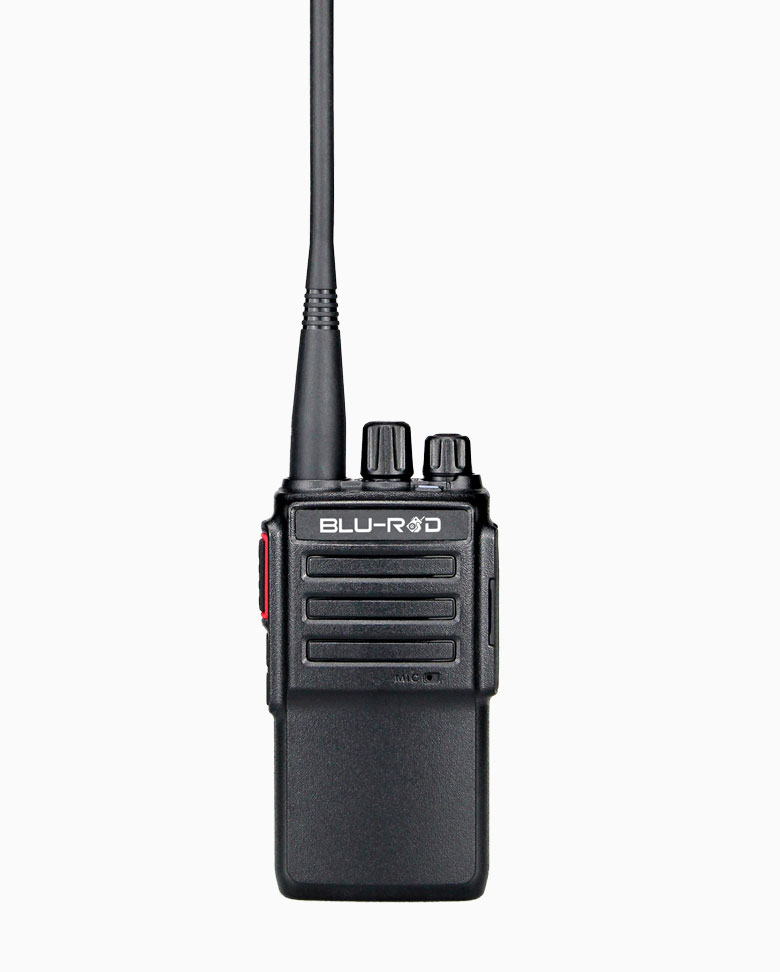

BLURAD AT158

Robust, Reliable, Cost-Effective Communication

The BLU-RAD AT158 is the best option if you're seeking for a strong, dependable, and affordable communication solution that will allow several work teams to connect and coordinate with one another.The AT158 is a lightweight, ergonomic radio that is manufactured in conformity with the European Union Radio Equipment Directive (RED 2014/53/EU) addressing human health-safety, EMC, and effective use of the radio spectrum. The AT158 is the ideal assistant for staff members working in harsh environments and lengthy shifts thanks to its rugged case and 2600mah powerful battery.

  • 16 Channels, 5W Power Output
  • Voice Prompting
  • CTCSS/DCS
  • DTMF/2TONE/5TONE
  • VOX
  • Priority Scanning
  • 2600mah Li-Ion Battery
Frequency VHF(136-174MHz) UHF(400-480MHz)
Channel Capacity 16 Channels
Channel Spacing 25KHz, 12.5KHz
Operating Voltage 7.4VDC ±20%
Frequency Stability ±2.5ppm
Operating Temperature -20°C~ +55°C
Dimensions 118x59x42mm(with Battery Pack)
Weight 220g (with Battery Pack)
Power Output 5W
Adjacent Channel Power 70dB@25KHz 60dB@12.5KHz
Hum & Noise 45dB@25KHz 40dB@12.5KHz
Spurious Emission -36dB@25KHz -36dB@12.5KHz
Audio Distortion 5%
Sensitivity (@12dB SINAD) 0.25uV@25KHz 0.35uV@12.5KHz
Adjacent Channel Selectivity 70dB@25KHz 60dB@12.5KHz
Spurious Rejection 65dB@25KHz 65dB@12.5KHz
Intermodulation 60dB@25KHz 60dB@12.5KHz
Hum & Noise 45dB@25KHz, 40dB@12.5KHz
Audio Distortion 5%
Audio Output Power 1000mW
